AbrasaPlate Wear Plate
A general purpose chrome-carbide overlay plate suitable for application in various positions.
High impact and abrasion resistance.
New 12 on 8 AbrasaPlate
Alloys International’s AbrasaPlate® is a high quality chrome-carbide weld overlay (CCO) wear plate. It is available in various dimensions of hardfacing overlay, and mild steel backing plate. It is easy to work with, and can be rolled, welded, and formed. It is available in standard sheets of up to 2.2×3.0m, or cut to size for a specific application. Alloys can supply AbrasaPlate® with studs welded or holes drilled. AbrasaPlate® is commonly used for a replacement in applications where Q&T plate is inadequate. Typical life extension over Q&T 360 is a minimum of 4 times, and can be up to 10 times, depending on application.
Alloys International have been the East Coast of Australia’s leading Wear Plate distributors for over 30 years.
OVERVIEW
- Chrome carbide wear plate

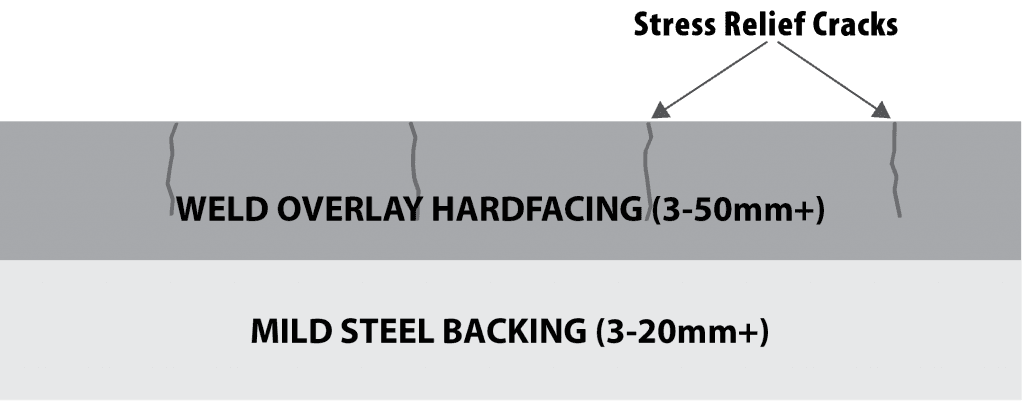

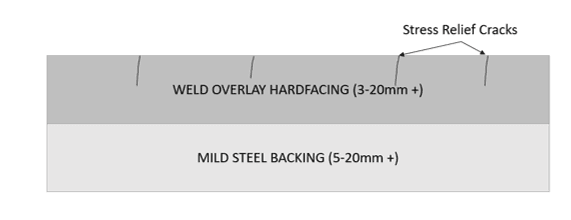

- Weld overlay hardfacing on mild steel backing
- Higher abrasion resistance compared to stainless steel, Q&T steel
- Easy to form, weld, roll, cut
- Different grades for different applications
- Excellent impact resistance
- Available in sheet form, replaceable wear liners or full fabricated assemblies

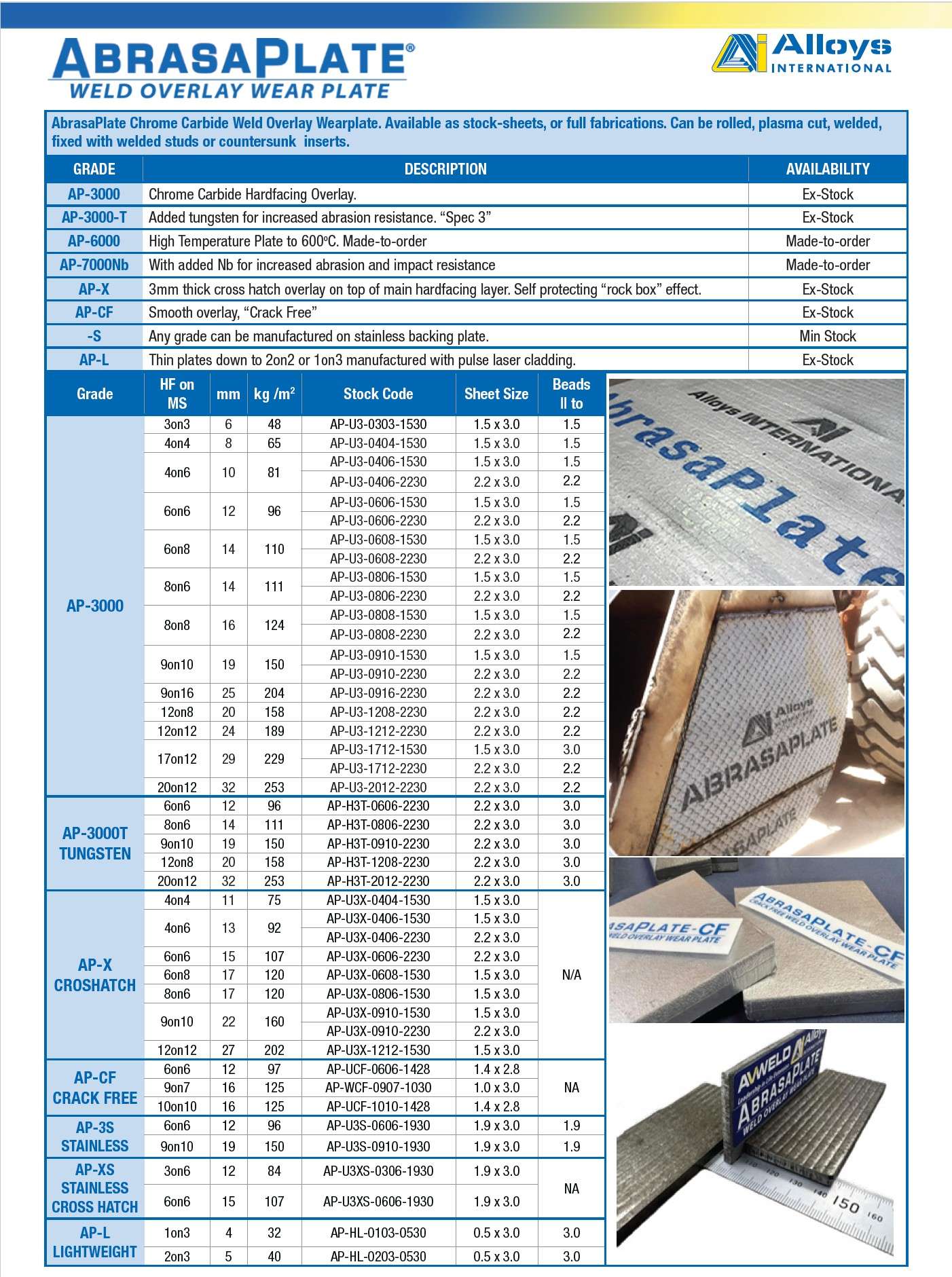

AVAILABLE GRADES
- AbrasaPlate® AP-3000 – General Purpose Wear Plate for high abrasion and moderate impact
- AbrasaPlate® AP-7000 – Complex carbide wear plate with Niobium, for extreme abrasion
- AbrasaPlate®-CF – Smooth, Crack-free wear plate to reduce hang-up.
- AbrasaPlate®-X – cross hatch overlay plate for self protection and high impact applications
- AbrasaPipe® – internally or externally hardfaced
| COMMON SIZES | |
|---|---|
| 3 on 3 | 8 on 8 |
| 4 on 4 | 9 on 10 |
| 4 on 6 | 9 on 16 |
| 5 on 8 | 12 on 8 |
| 6 on 6 | 12 on 12 |
| 6 on 8 | 17 on 12 |
| 8 on 6 | 20 on 10 |
| Other sizes on request | |
| COMMON APPLICATIONS | ||
|---|---|---|
| Chutes | Tray Liners | Buckets |
| Ducts | Screen Plates | Hoppers |
| Pump Casing | Screws + Troughs | Crusher Liners |
| Fans + Casings | Elbows | Ground-Engaging Tools |

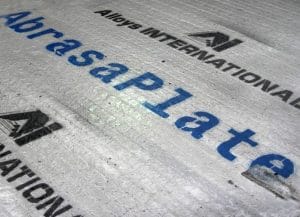

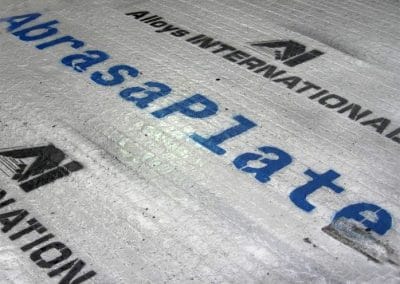

AbrasaPlate® wear plate
Bucket with AbrasaPlate® X
AbrasaPlate® Wear Plate
AbrasaPlate®-X cross hatch wear plate

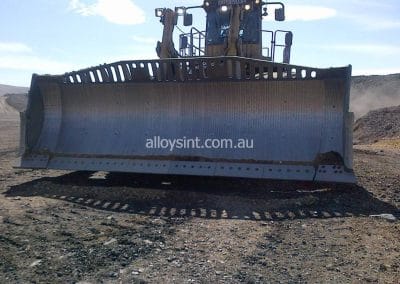

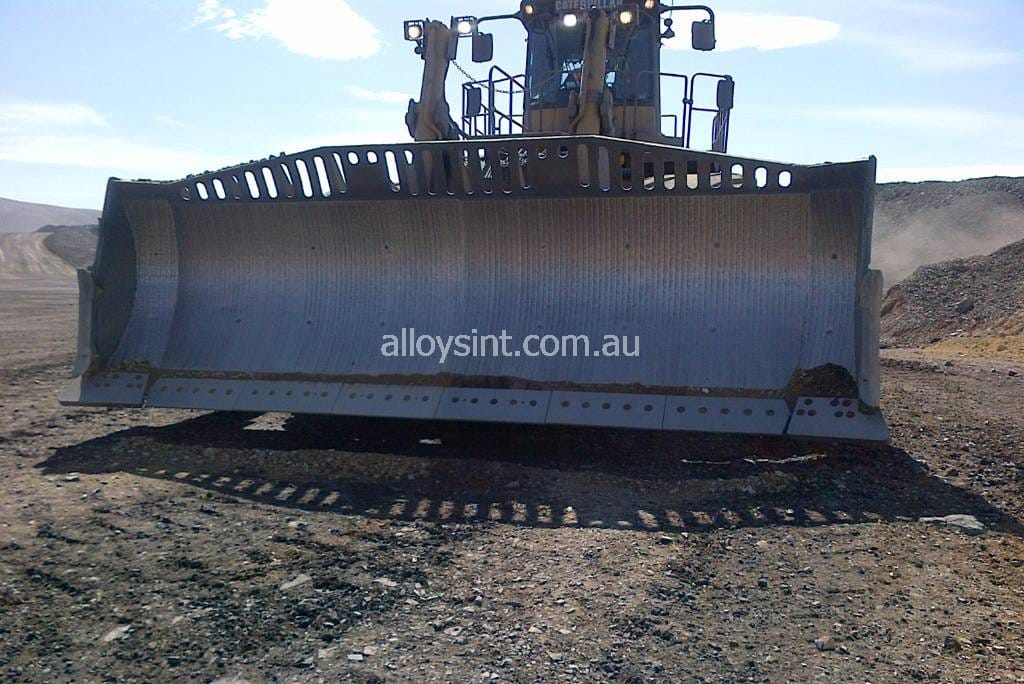

Blade Wear Liner

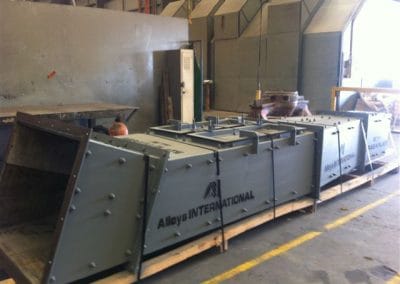

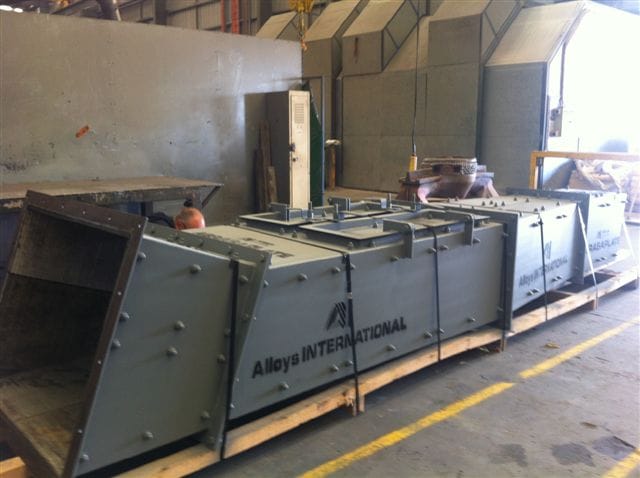

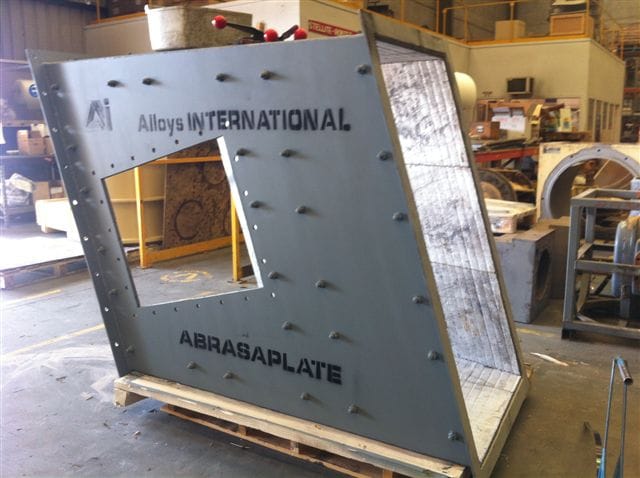

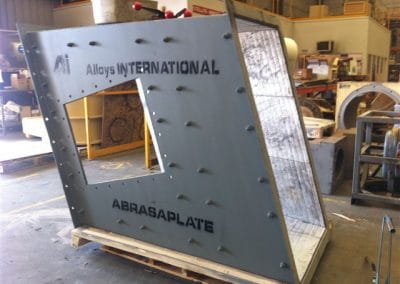

AbrasaPlate® Fabrication Wear Plate

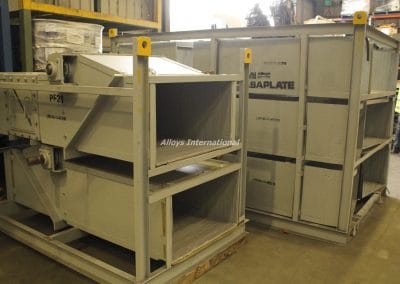

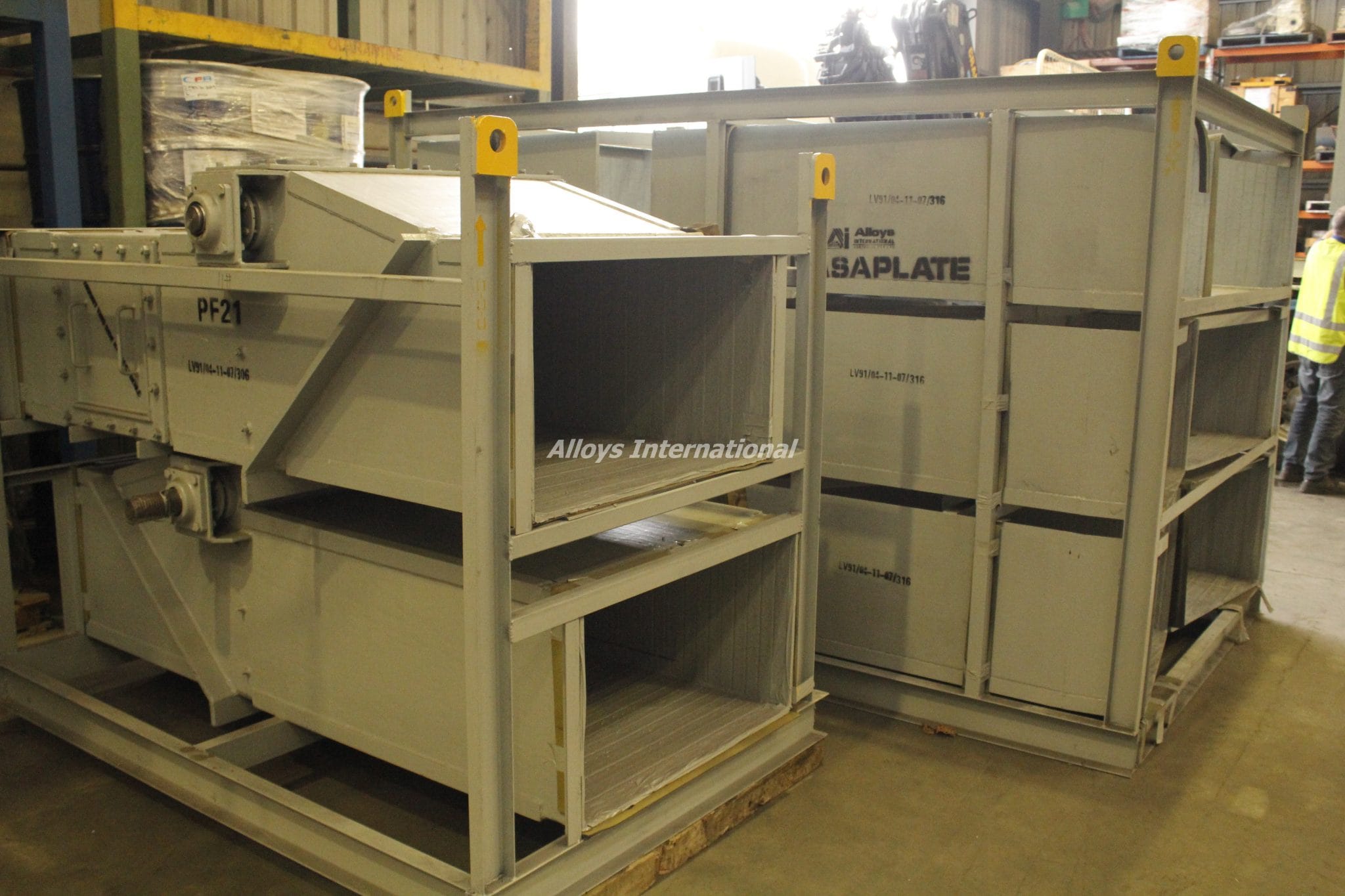

AbrasaPlate® PF Ducts
Chrome Carbide Wear Plate for a cement chute

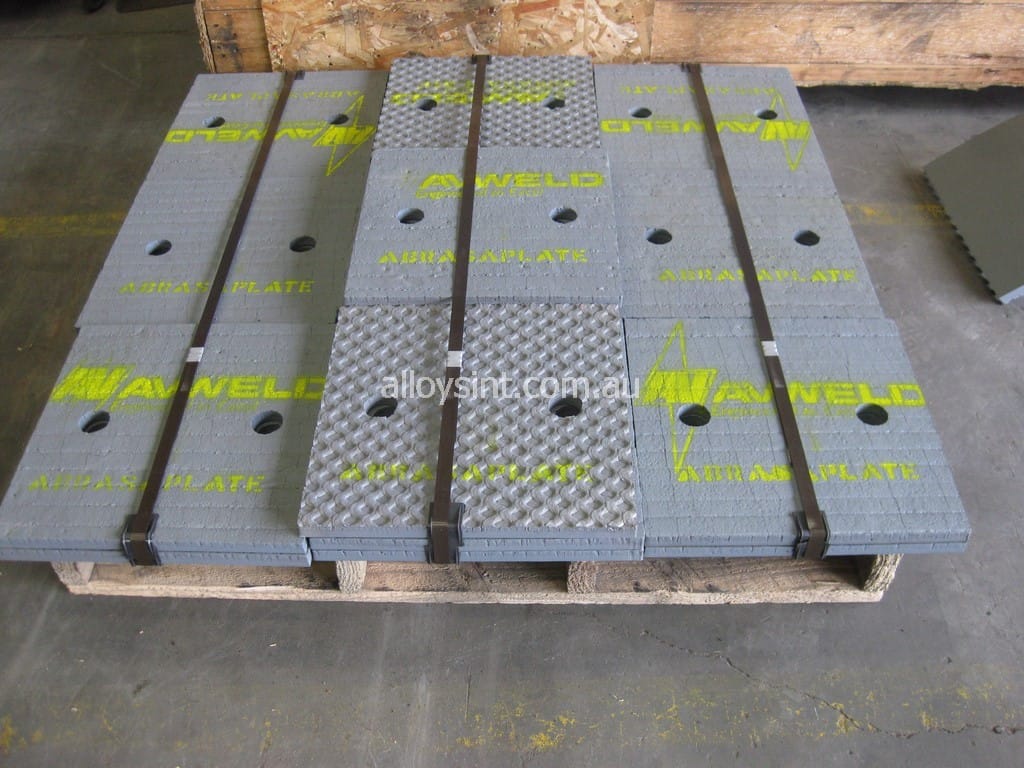

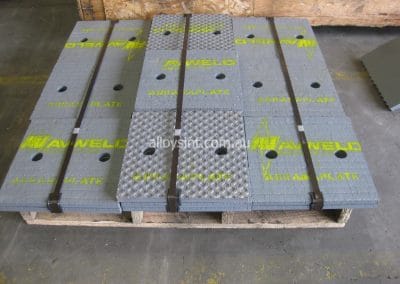

AbrasaPlate® Quarry Impact Plates

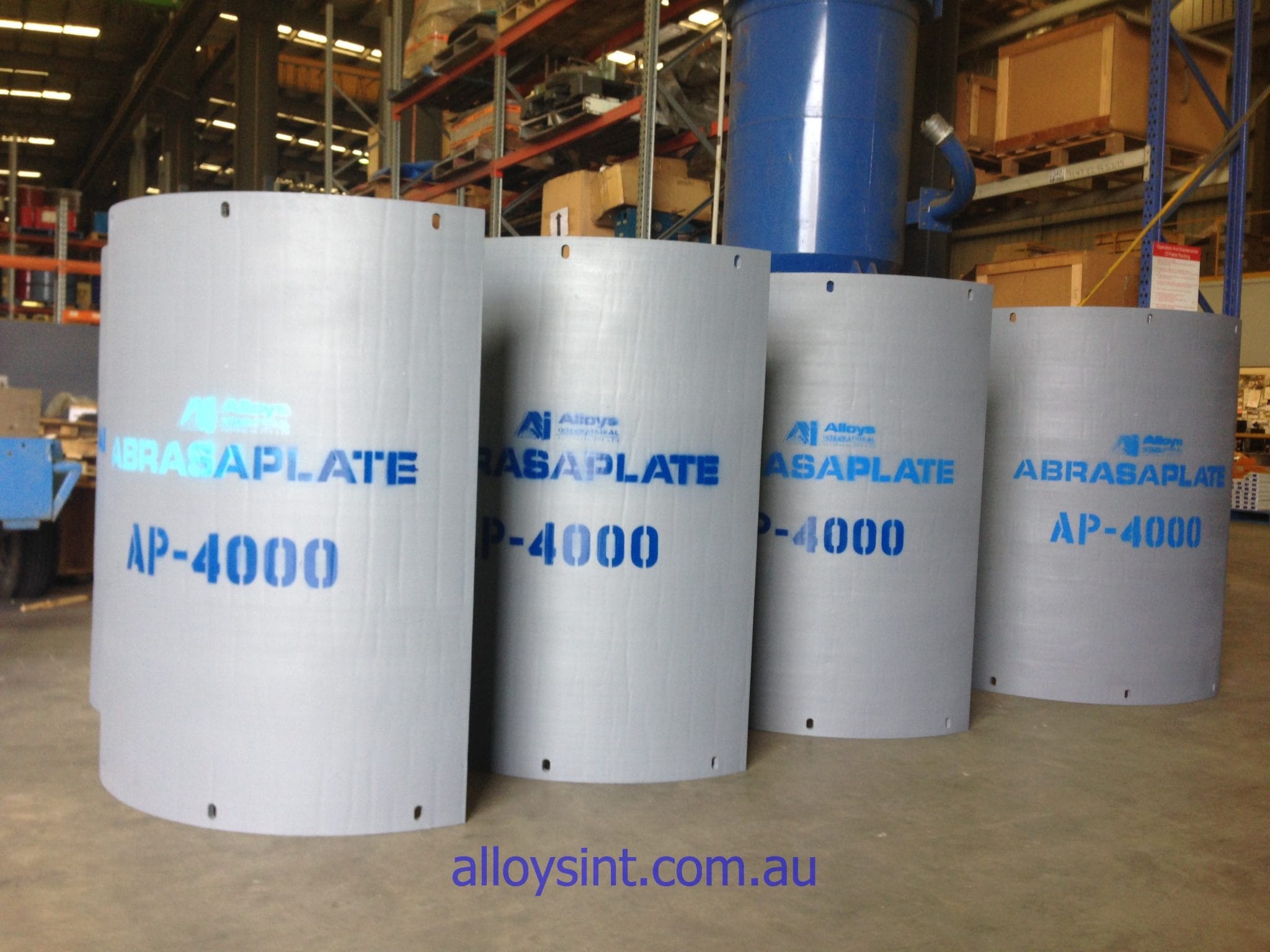

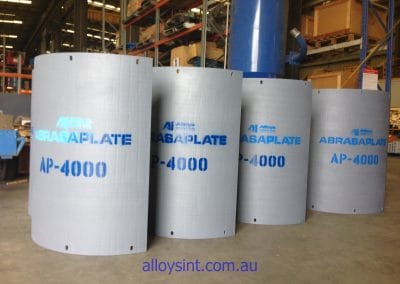

Coal Fired Power Station Wear Plates

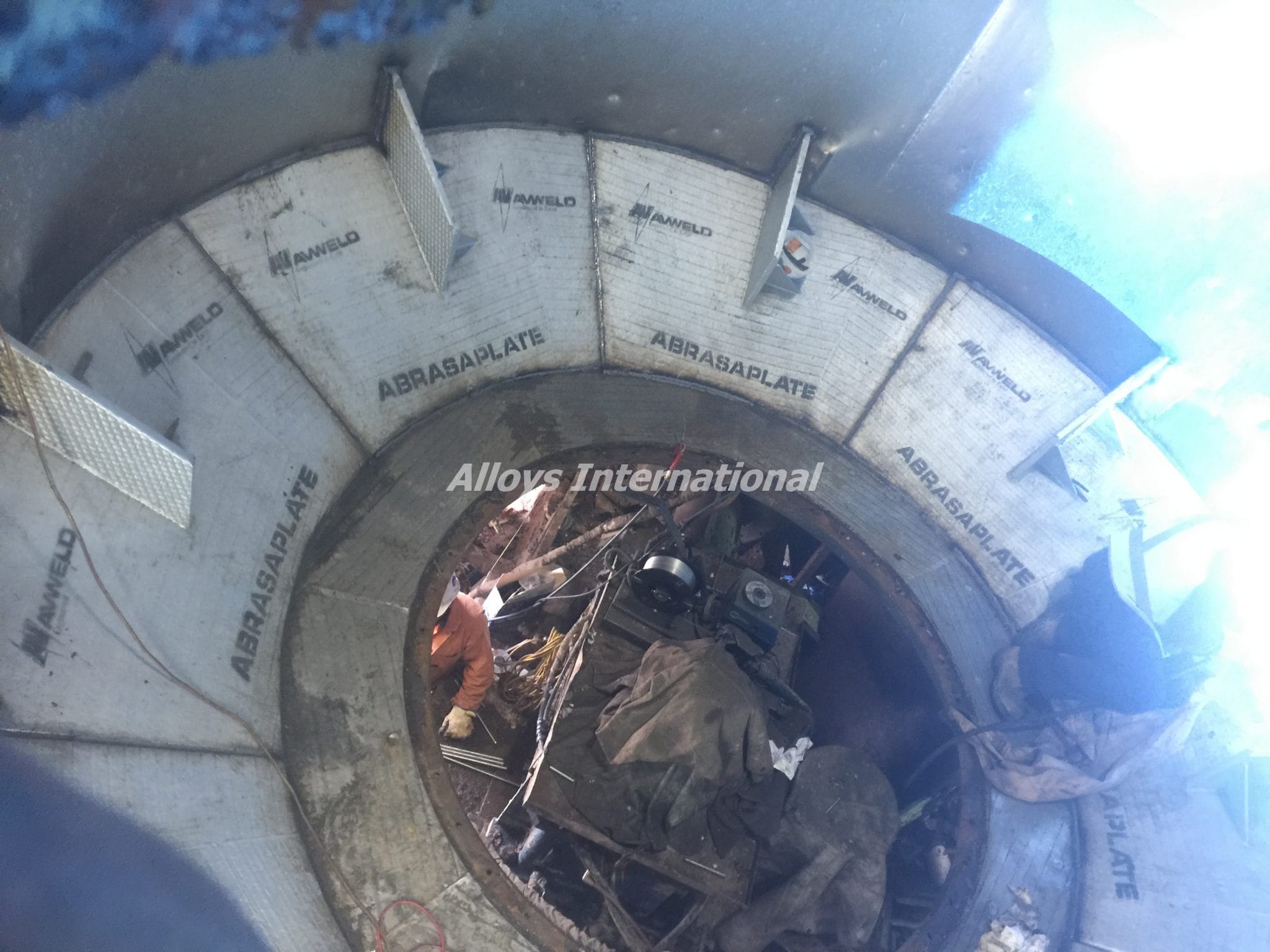

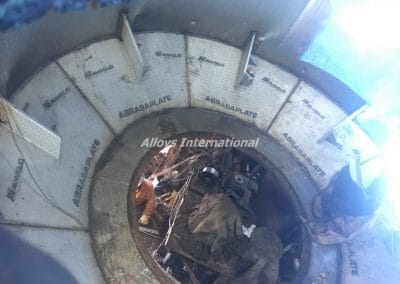

Hydropulper AbrasaPlate® Wear Plate
Pulper Wear Plate

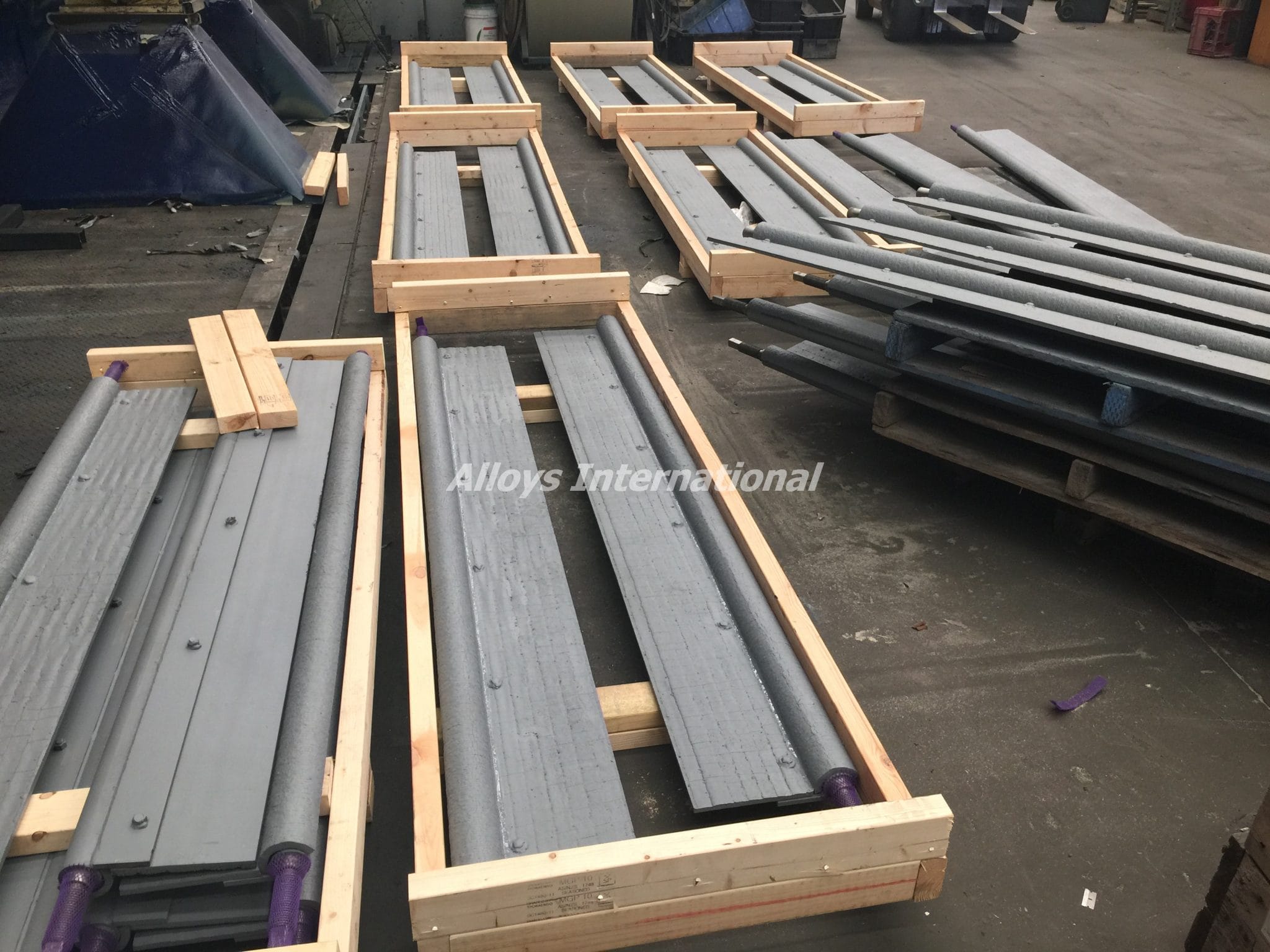

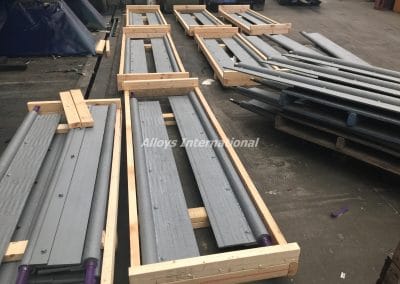

Cement Classifier Blades

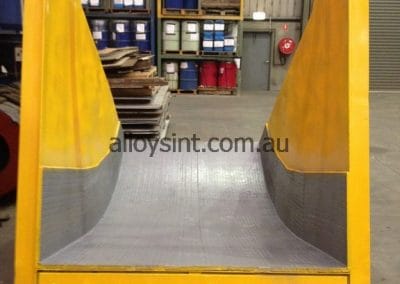

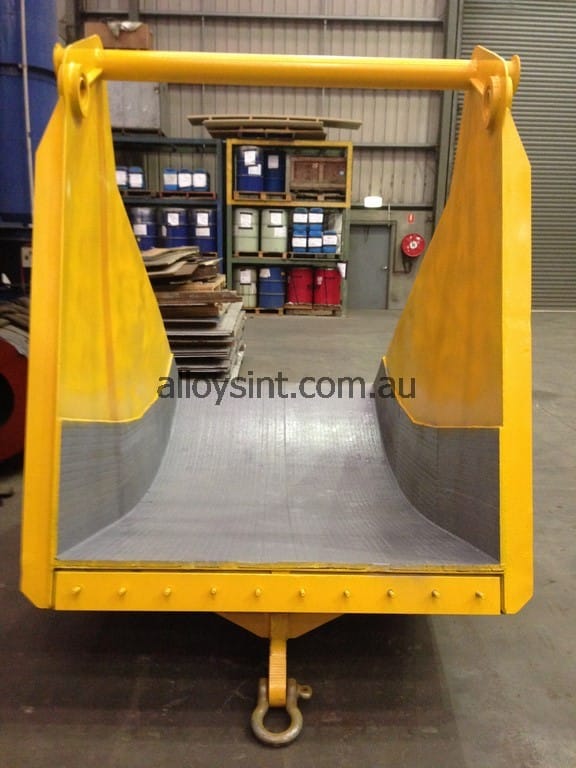

AbrasaPlate® Coal Ship Loader
