AbrasaPipe
A general purpose chrome-carbide overlay plate suitable for application in various positions.
High impact and abrasion resistance.
Stemming from the long term success of AbrasaPlate®, we are now pleased to introduce AbrasaPipe®. AbrasaPipe® is hardfaced mild steel pipe, which offers many times longer life than mild steel pipe. The chrome carbide overlay features excellent smoothness, hardness and abrasion resistance.
AbrasaPipe® has already had significant success in applications including underground mining and cement, where the cost of replacing worn out pipe is far higher than the costs of pipe. Using AbrasaPipe® means that our customers can rest easy – knowing they have the longest life pipe product available.
AbrasaPipe® is available either as straight pipe, or with custom or standard flanges already fitted. Ask your Avweld representative for details.
download AbrasaPipe® brochurePIPE SIZES
| mm | Inch | OD | ID | Internal Hardfacing (mm) |
|---|---|---|---|---|
| 63 | 2.5 | 73 | 52 | 3 |
| 75 | 3 | 89 | 72 | 3 |
| 90 | 3.5 | 102 | 86 | 3 |
| 100 | 4 | 114 | 98 | 3 |
| 150 | 6 | 168 | 150 | 3 |
| 200 | 8 | 219 | 197 | 4 |
| 250 | 10 | 273 | 249 | 4 |
| 300 | 12 | 324 | 297 | 4 |

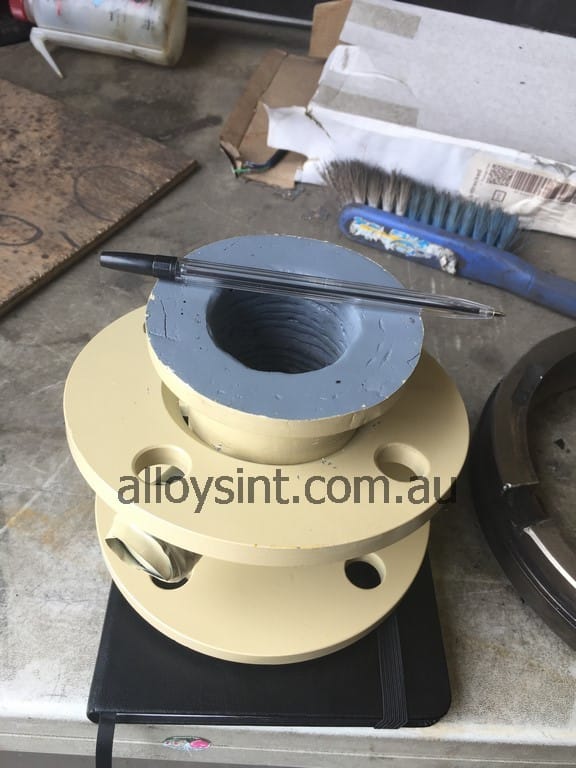

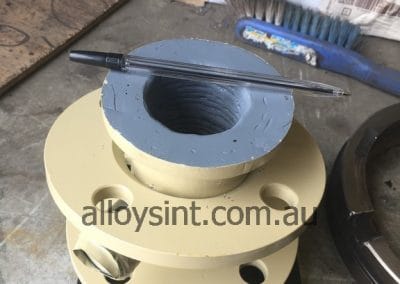

Small pipe hardfaced down to 50mm

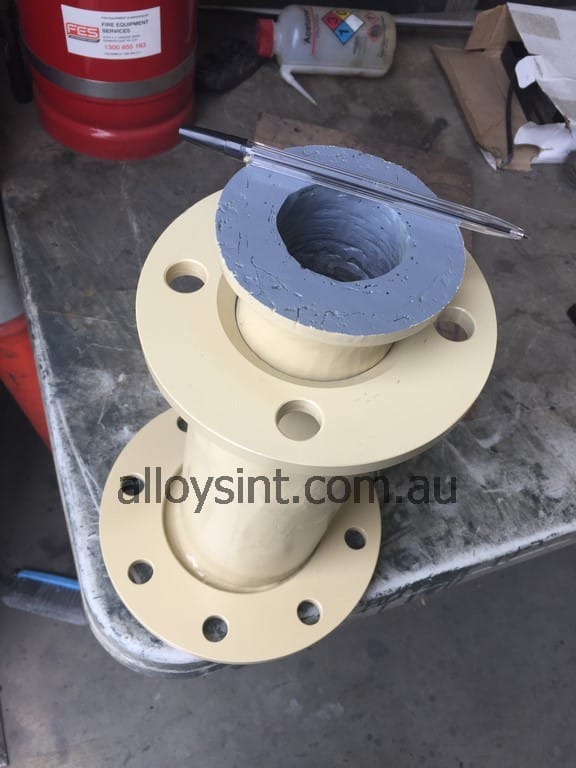

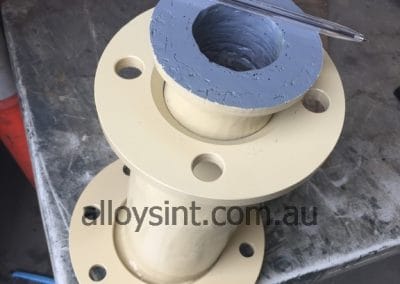

Internally Hardfaced Pump Spool

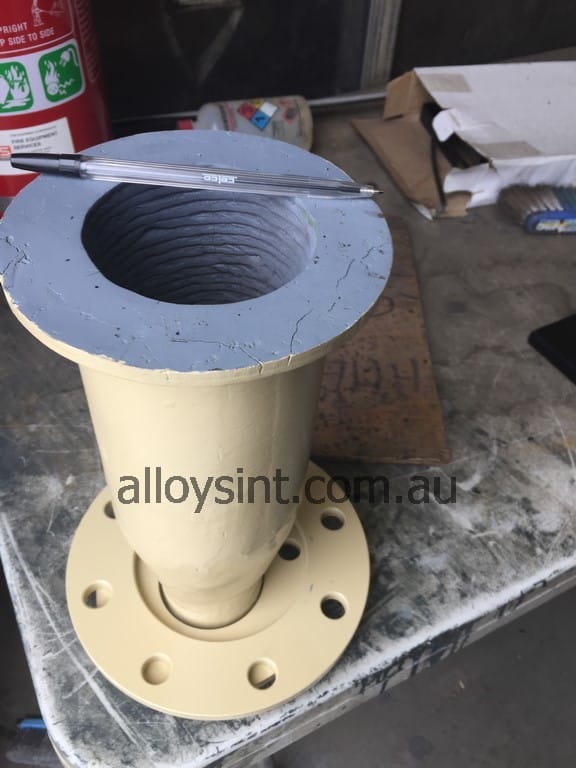

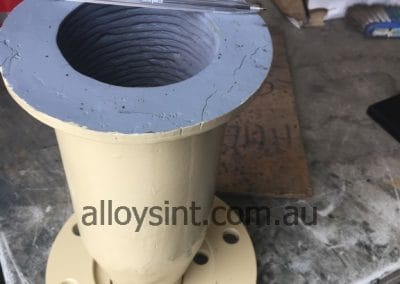

Hardfaced Neck Rings

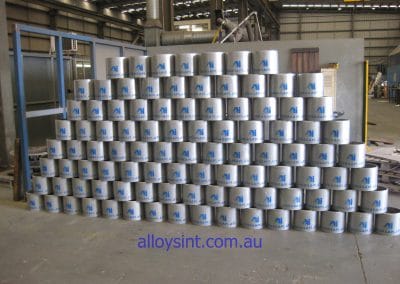

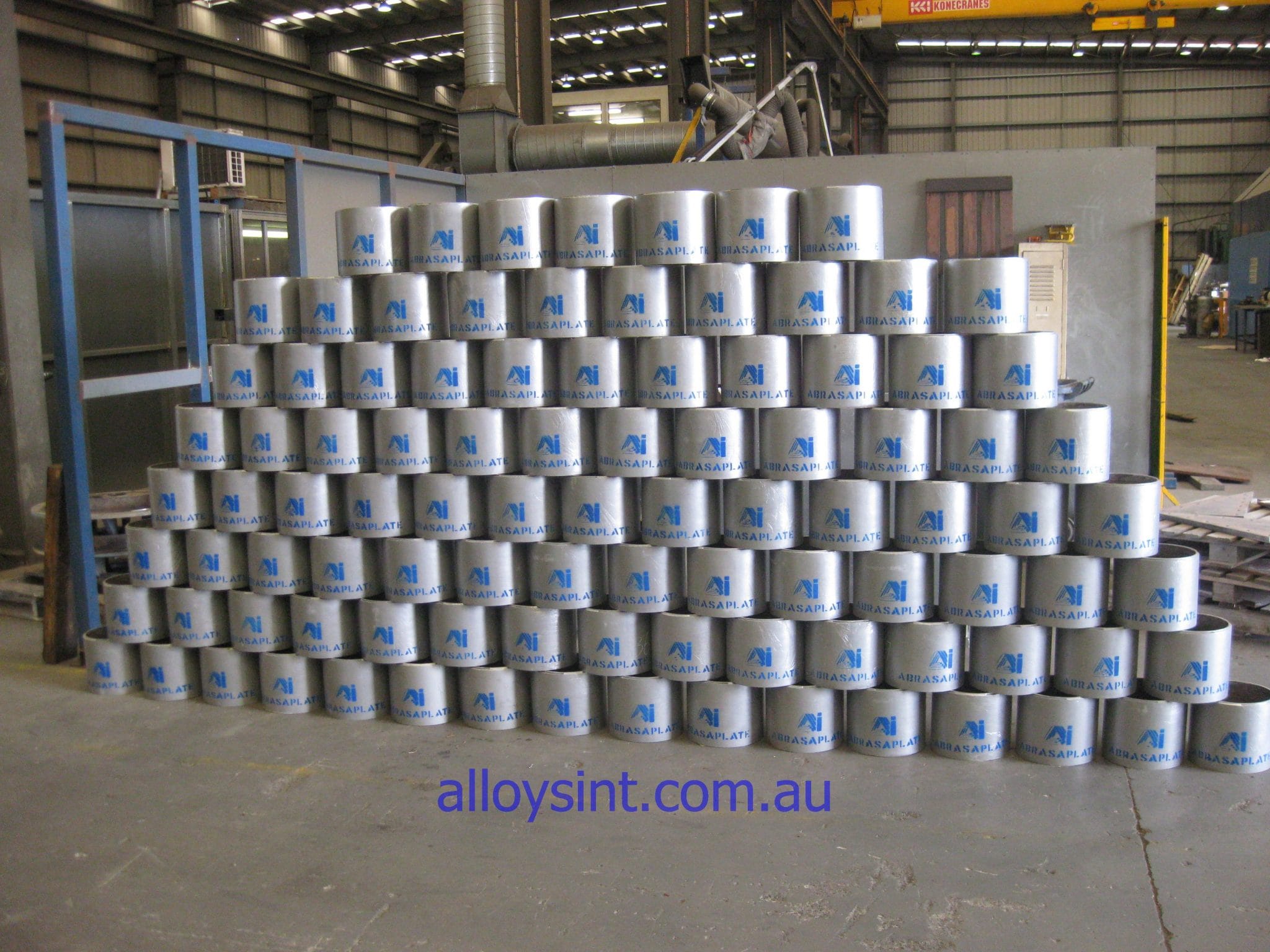

Internally Hardfaced Pipe for cement industry
Internally Hardfaced Pump Spool

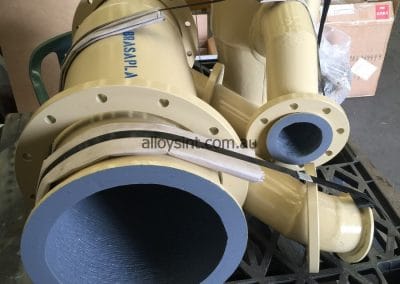

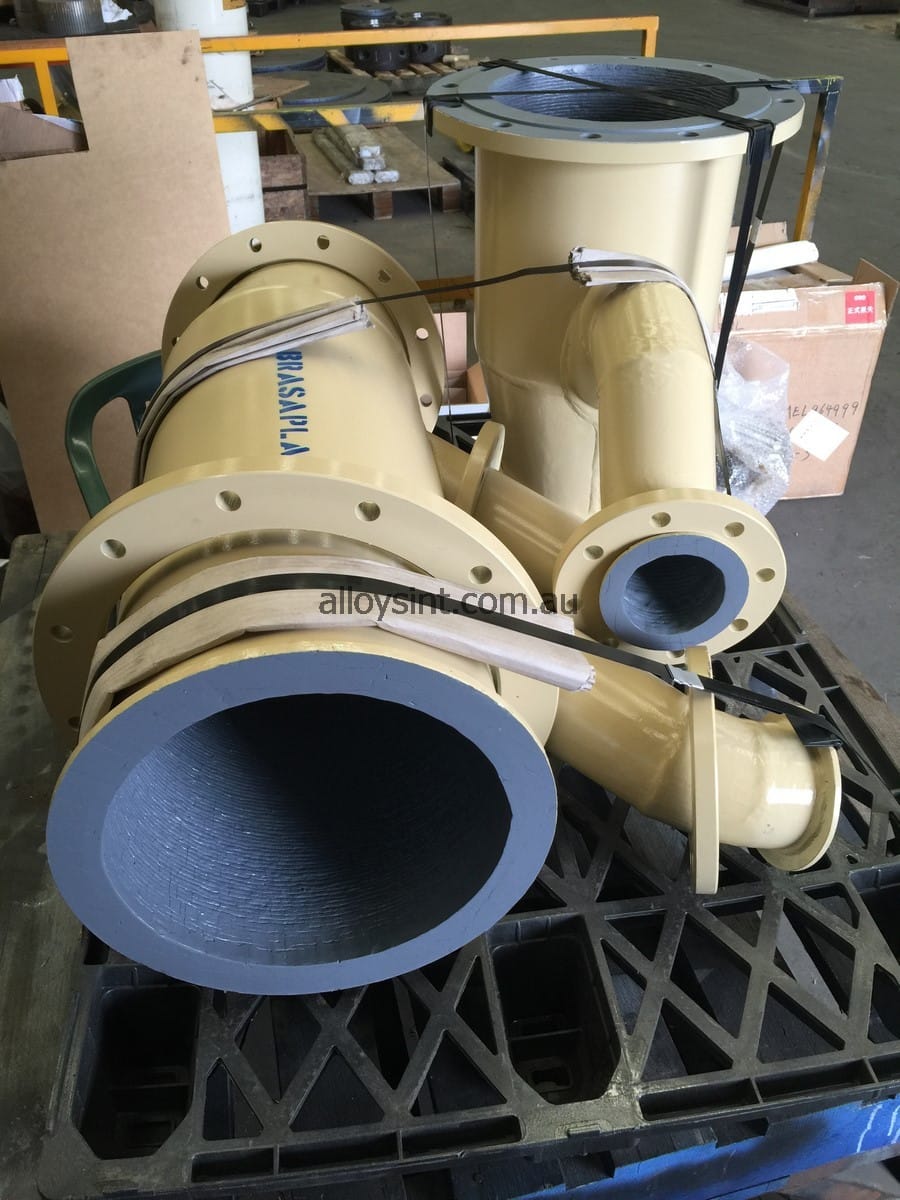

Internally hardfaced pipe
